Employed is a multi-structure cantilever composed of boron and aluminium.
The preeminent feature is to realise high-quality sound
with wide range reproduction spectrum under an outstanding S/N ratio.
50 – 100 ohms for head amp
|
|
|

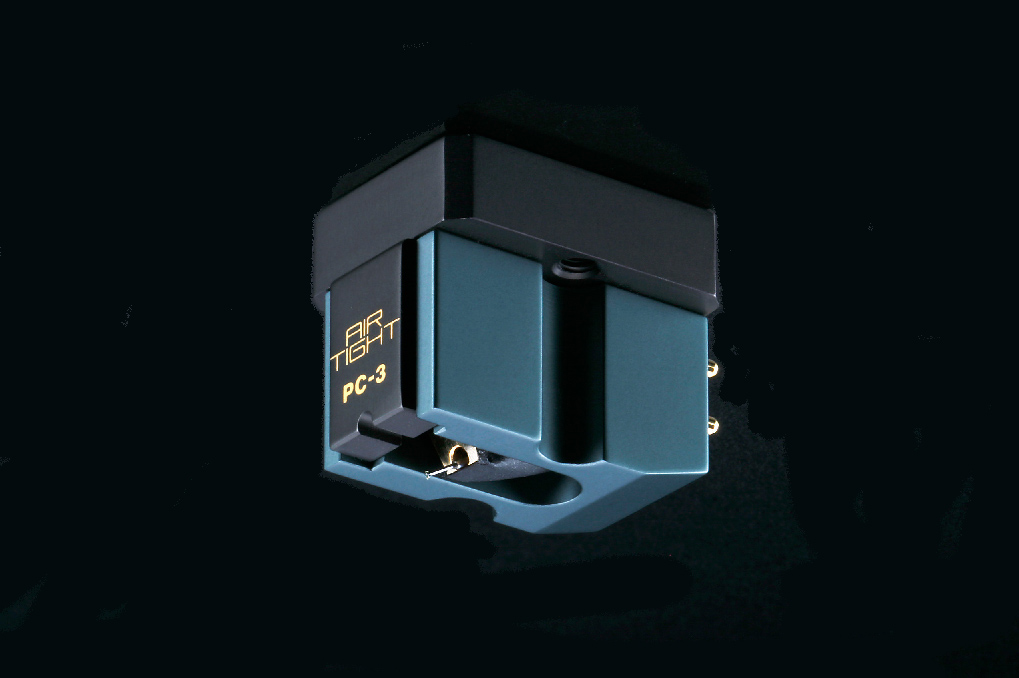

| PC-3 Standard MC Phono Cartridge Employed is a multi-structure cantilever composed of boron and aluminium. The preeminent feature is to realise high-quality sound
with wide range reproduction spectrum under an outstanding S/N ratio. |
||
| Output voltage | 0.55mV (1kHz 5cm/sec.) | |
| Channel balance | within 0.8dB (1kHz) | |
| Tip shape | semi-line contact | |
| Tip | diamond | |
| Cantilever | complex structure of boron and aluminium | |
| Magnet | Samarium-cobalt | |
| Coil DC resistance | 9 ohms | |
| Weight | 13.5g | |
| Stylus pressure | 1.4 – 1.8g | |
| Recommended load impedance | 15 – 30 ohms for step-up
transformer 50 – 100 ohms for head amp |
|
