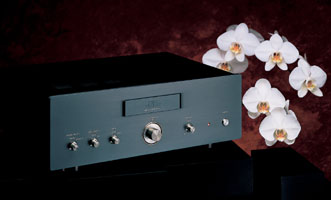

ATE-2 Phono Equaliser Amplifier
Fascination of Sonic Aroma
  • Genuine valve configuration for whole amp stages even at power supply
  • Latest sonic-oriented high quality attenuator for matchless sonic transparency and silky smoothness
  • EQ circuitry composed of 2-stage NF & SRPP to insure wide-band spectrum and minimum distortion
  • Elaborate power supply for high stability and low noise
  • Direct accessible EQ output bypassing volume pot
  • High-mass, vibration proof chassis for high rigidity
Valves employed 12AX7 (ECC83) x 3, 12BH7A x 1, EF86 (6267) x 1, ECC88 (6DJ8) x 2, EZ90 (6X4) x 1
Phono input 2 channels
Line input 1 channel
Mode stereo/mono selector
EQ output direct/buffered (2 channels)
Dimensions 405 (W) x 330 (D) x 145 (H) mm
Weight 12 kgs
