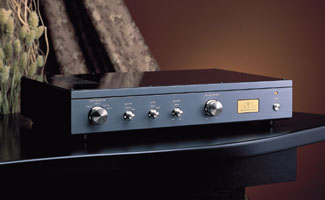

ATC-3 Stereo Line-Control Amplifier
Impeccable affordable match for sophisticated power amps
  • SRPP line amp with reinforced buffer stage to assure good noise rejection, low output impedance and extended linearity
  • Rich power supply featuring quick recovery diode for high operational speed and low pulse noise
  • Single steel sheet with multi-layer enamel for high rigidity and low noise
  • High quality input/output jacks with detachable mains cord
Valves employed 12AX7 (ECC83) x 1, 12AU7 (ECC82) x 2
Output voltage rated 2V, max. 15V
Output impedance 200 ohms
THD less than 0.01%
Input sensitivity 110mV (output 1V)
S/N ratio 90dB (IHF-A weighted)
Dimensions 430 (W) x 325 (D) x 90 (H) mm
Weight 8 kgs
